Description
Features
- Revolutionary Design External Brake: Enhances control and safety during heavy pulls.
- 600 Amp Silver Tip Contactor: Provides superior electrical performance for reliable operation.
- Silver Copper Motor with Copper Brush Holders: Offers improved durability and efficiency for extended motor life.
- IP67 Waterproof Sealing: Full protection against dust and water, ensuring reliable performance in extreme conditions.
- HRC50 Full Steel Gears: High-strength steel gears for maximum durability and long-lasting
Information

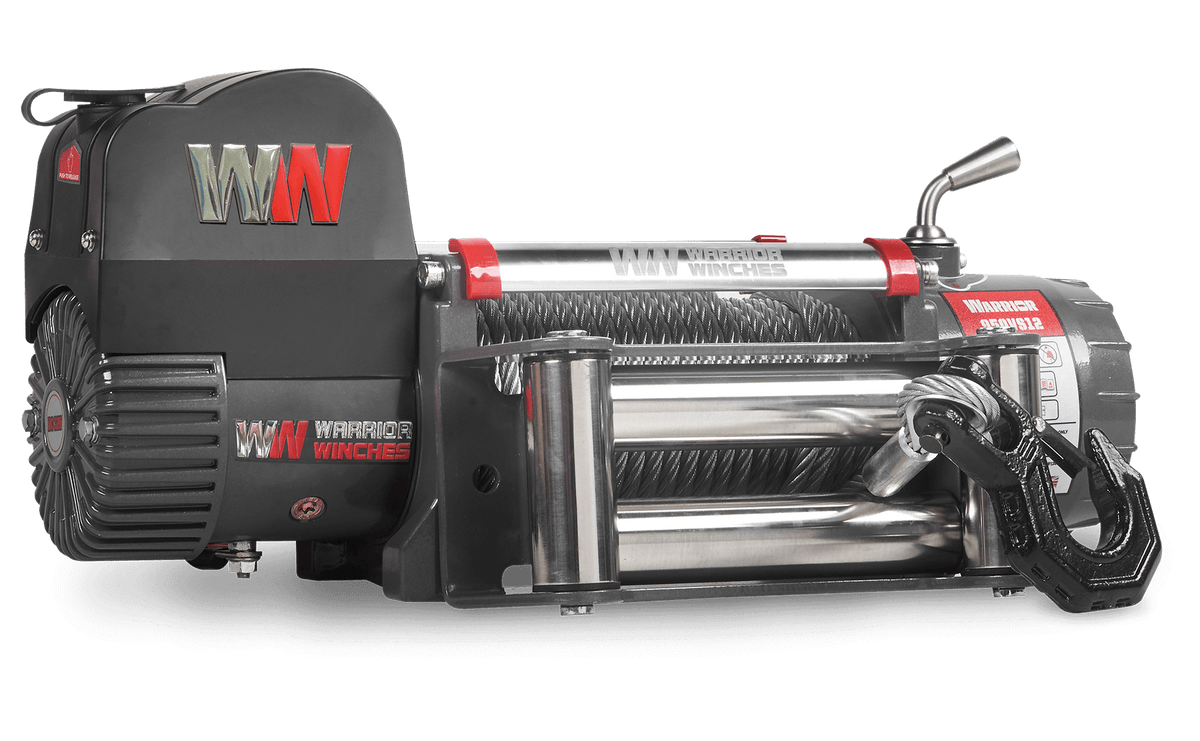

Next-Generation Samurai Winch: Faster, Tougher, and Ready for Anything
The Next Generation Samurai isn’t just another winch—it’s a game-changer. Designed for maximum power, speed, and efficiency, this winch pulls faster, draws less current, and delivers unstoppable performance when it matters most.
At its core is a revolutionary external brake system, giving you superior load holding and smooth, controlled pull while eliminating heat buildup in the drum. That means better performance, greater safety, and zero compromises—making it the ultimate choice for recovery and 4x4 applications.
Built tough for real-world challenges, the Samurai features a high-performance series wound double-sealed motor with solid brass contacts, heavy-duty 4-pin waterproof contactors, and a double-sealed drum with maintenance-free bearings. Add in quiet, ultra-efficient full-steel planetary gearing, and you’ve got a winch that’s as durable as it is powerful.
Every Samurai winch comes fully equipped with a premium fairlead and premium fittings, and the 12V version includes a heavy-duty integrated wireless remote, giving you total control at your fingertips.
When the trail gets rough and the job gets tough, the Samurai doesn’t back down. More power. More control. More confidence. Get yours today.
Specifications
| Rated Line Pull | 12500 lbs |
| Motor Type | 12V:Input:6.7hp/5.0Kw Output:3.2hp/2.4kW |
| Rated Volt | 12v |
| Clutch | Manual |
| Gearing | 253:1 |
| Gearing System | Planetary |
| Braking Action | External Brake |
| Drum Size (Diameter x Length) | 2.48 x 8.78 in |
| Controls | Wired Remote Wireless Remote |
| Cable Material | Steel |
| Cable Size (Diameter x Length) | 0.40 in x 85 ft Find replacement Armortek Synthetic Rope |
| Fairlead | Roller |

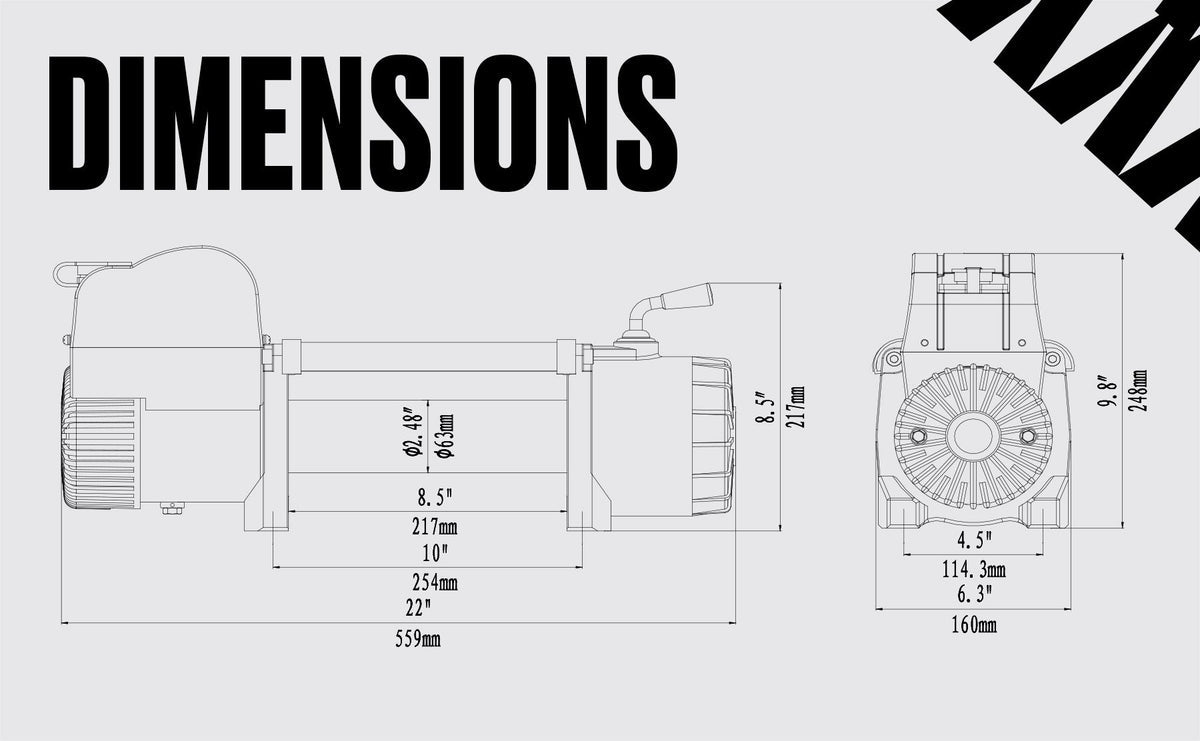

| Mounting Pattern | 10 x 4.4 in |
| Dimensions (LWH) | 22.01 x 6.30 x 9.76 in |
| Weight | 97 lbs |
| Warranty | 5 Year |
| Certification | CE |
| Layer of Rope/Cable | Line Pull: lbs(kgs) | Rope on drum ft(m) |
|---|---|---|
| 1 | 12500 (5669) | 15.1 (4.6) |
| 2 | 9775 (4433) | 34.1 (10.4) |
| 3 | 8000 (3628) | 57.7 (17.6) |
| 4 | 6800 (3084) | 83.7 (25.5) |
| Line Pull lbs (kgs) |
Line Speed 12v ft/min (m/min) |
Line Speed 24v ft/min (m/min) |
Amp Draw 12v |
Amp Draw 24v |
|---|---|---|---|---|
| 0 | 27.9 (8.5) | 36.1 (11.0) | 45 | 30 |
| 6000 (2721) | 11.5 (3.5) | 12.1 (3.7) | 200 | 130 |
| 8000 (3629) | 8.2 (2.5) | 10.5 (3.2) | 240 | 180 |
| 10000 (4535) | 5.9 (1.8) | 8.9 (2.7) | 300 | 220 |
| 12500 (5669) | 4.2(1.3) | 7.5(2.3) | 380 | 255 |

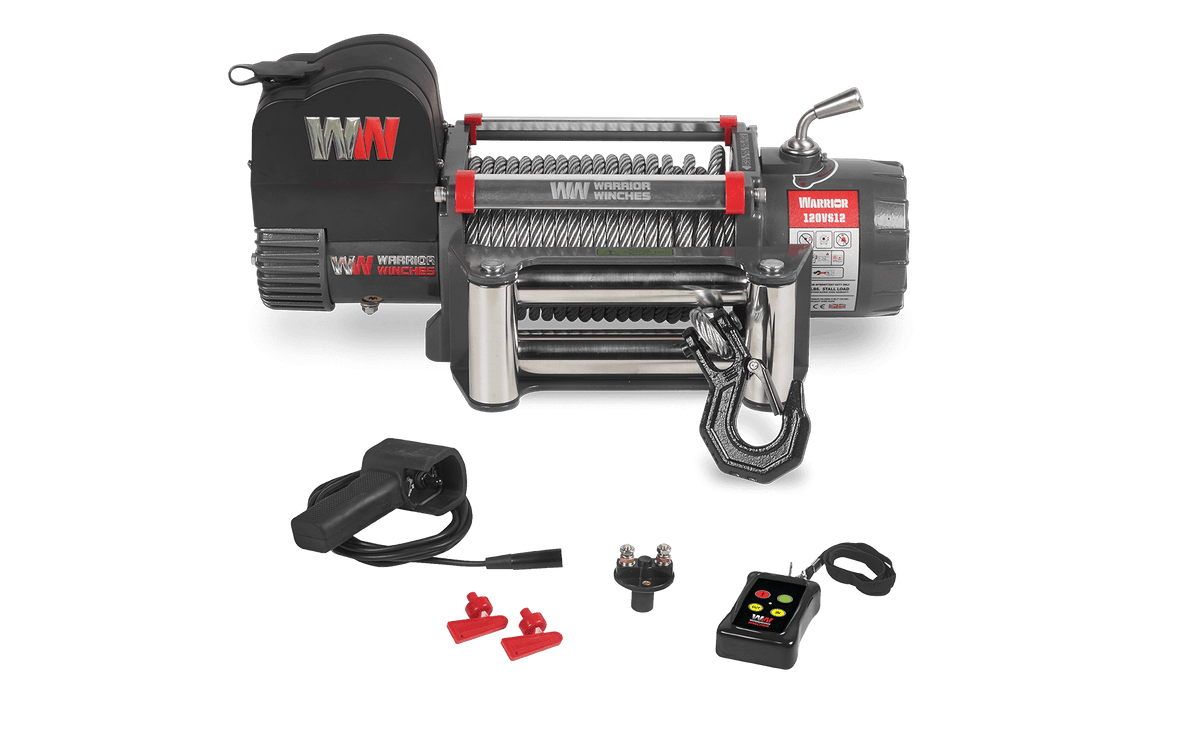

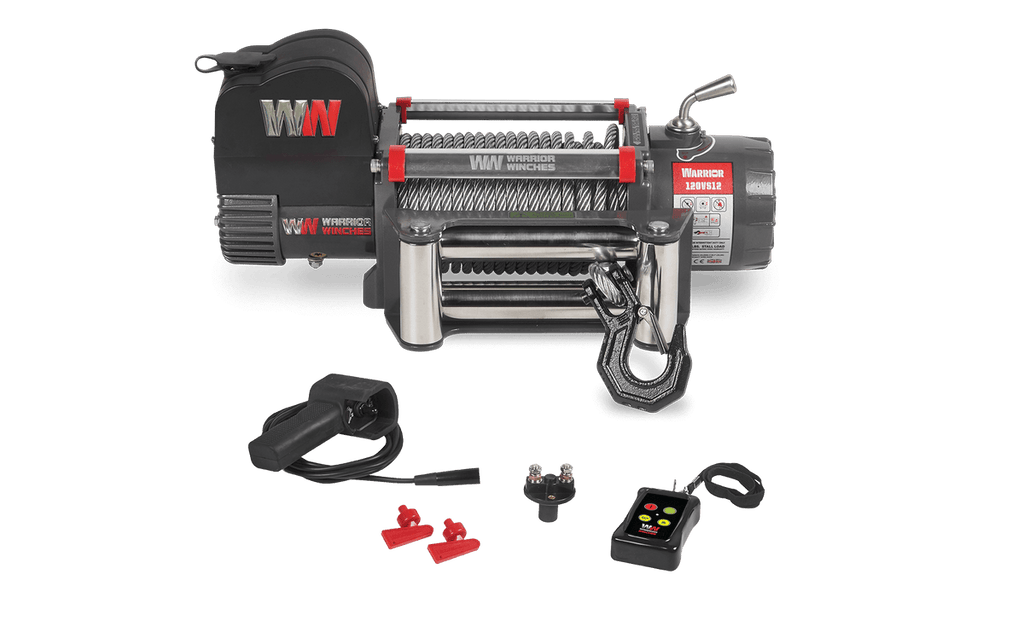

What's in the box
- Samurai Winch
- Heavy Duty Stainless Steel Fairlead
- Steel Rope
- Heavy Duty Battery Leads
- 12.4 FT Wired Remote handset
- Wireless 2.4G Upgraded Remote
- Removable Heavy Duty Hook
- Isolation Switch
- Stainless Steel Mounting Hardware (nuts/bolts)
