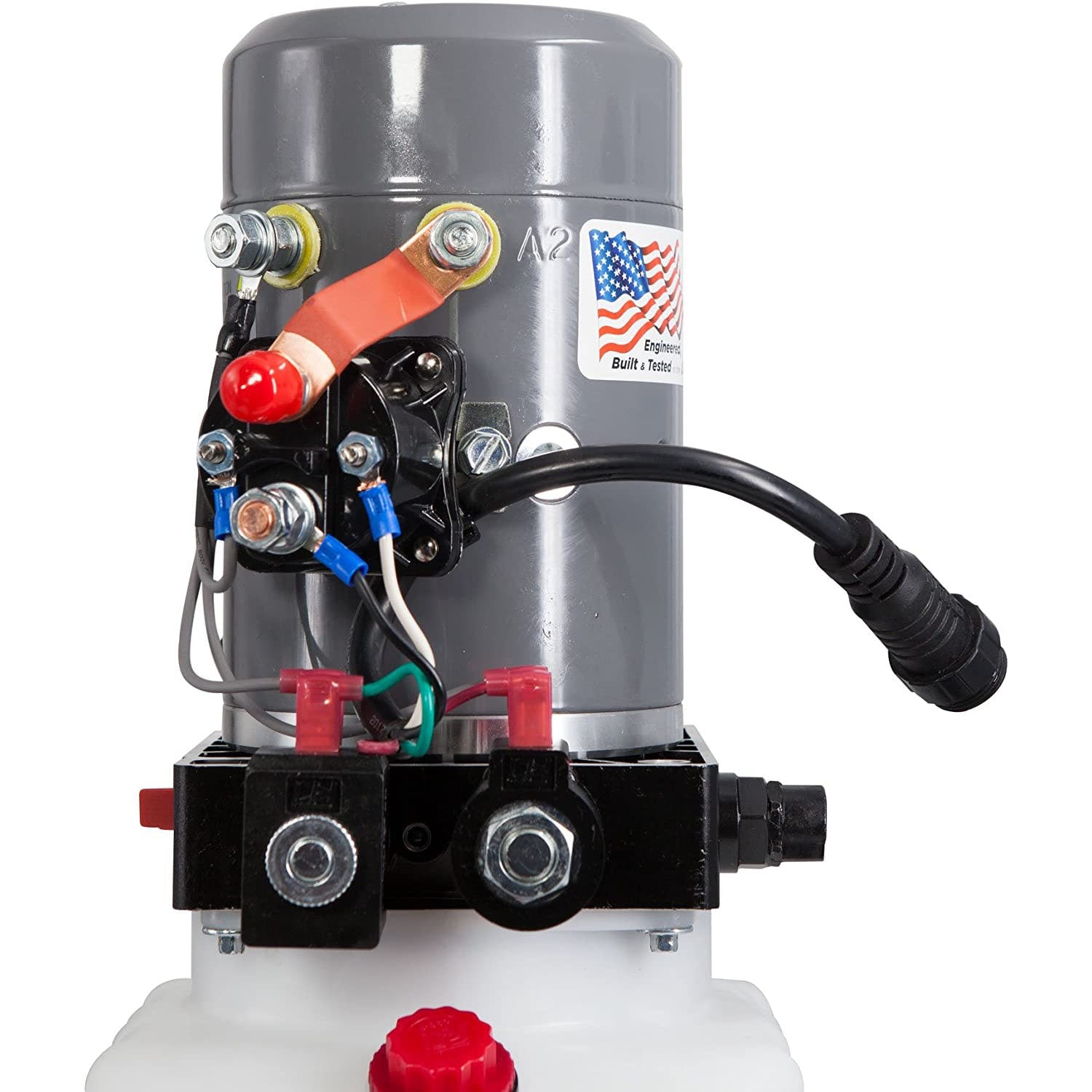

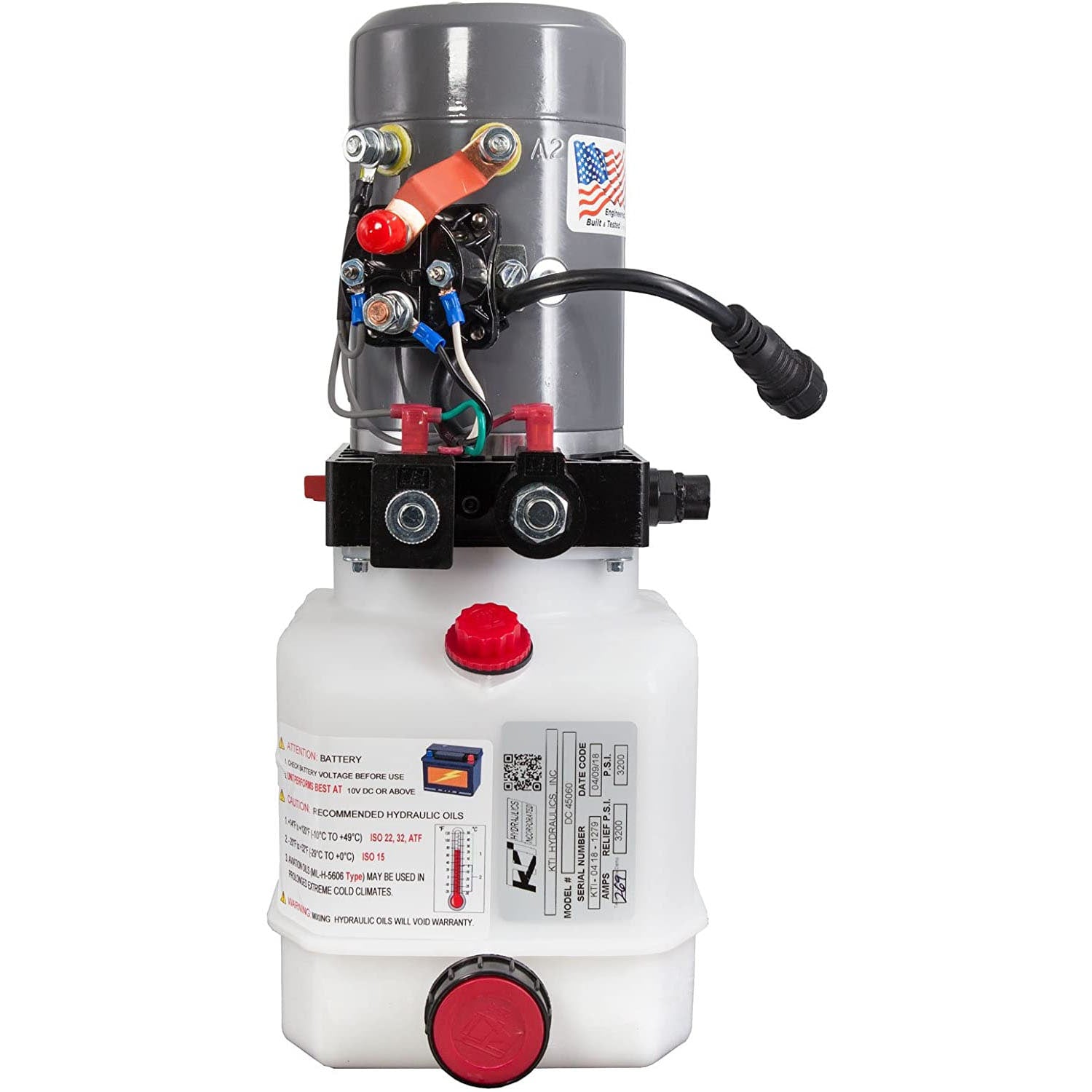

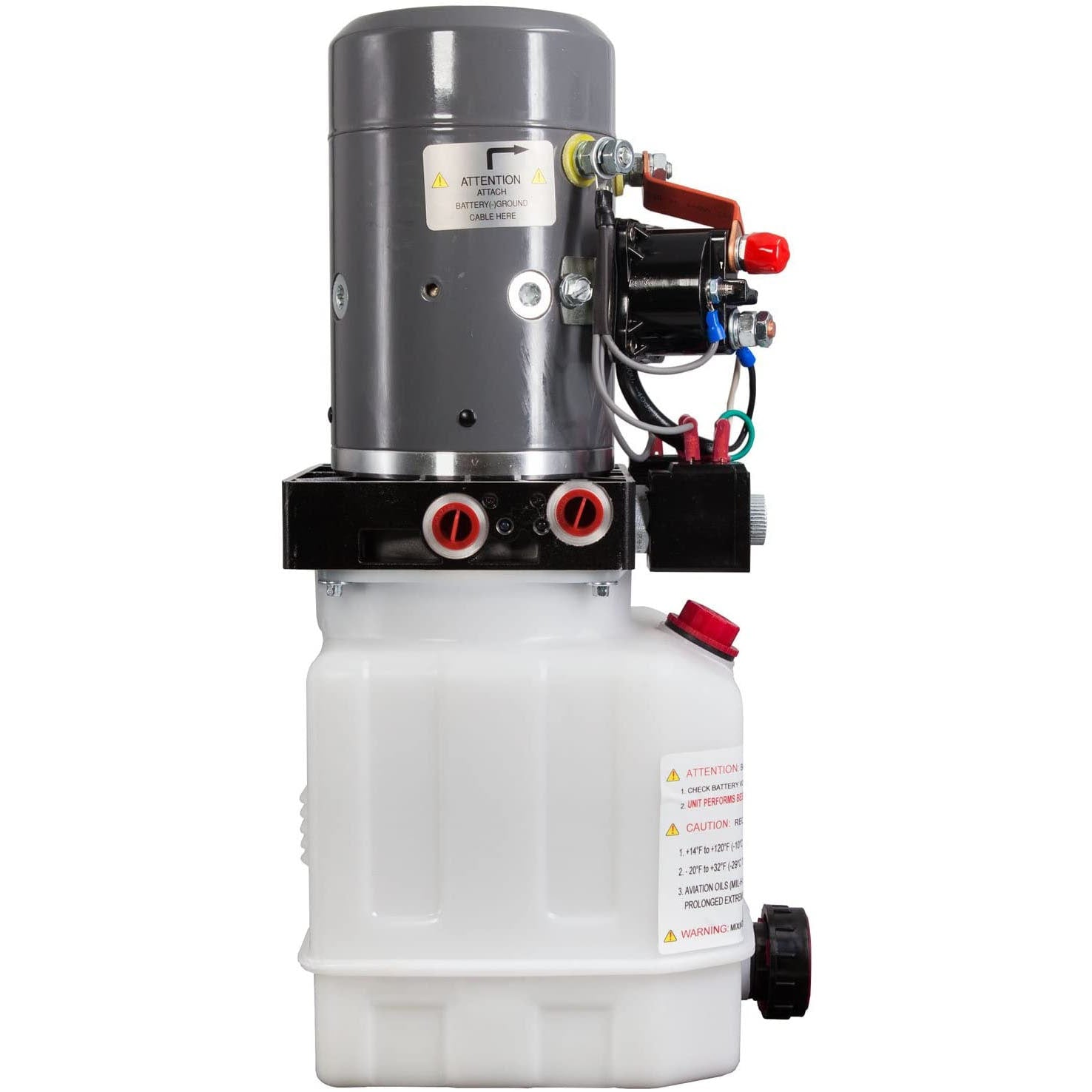

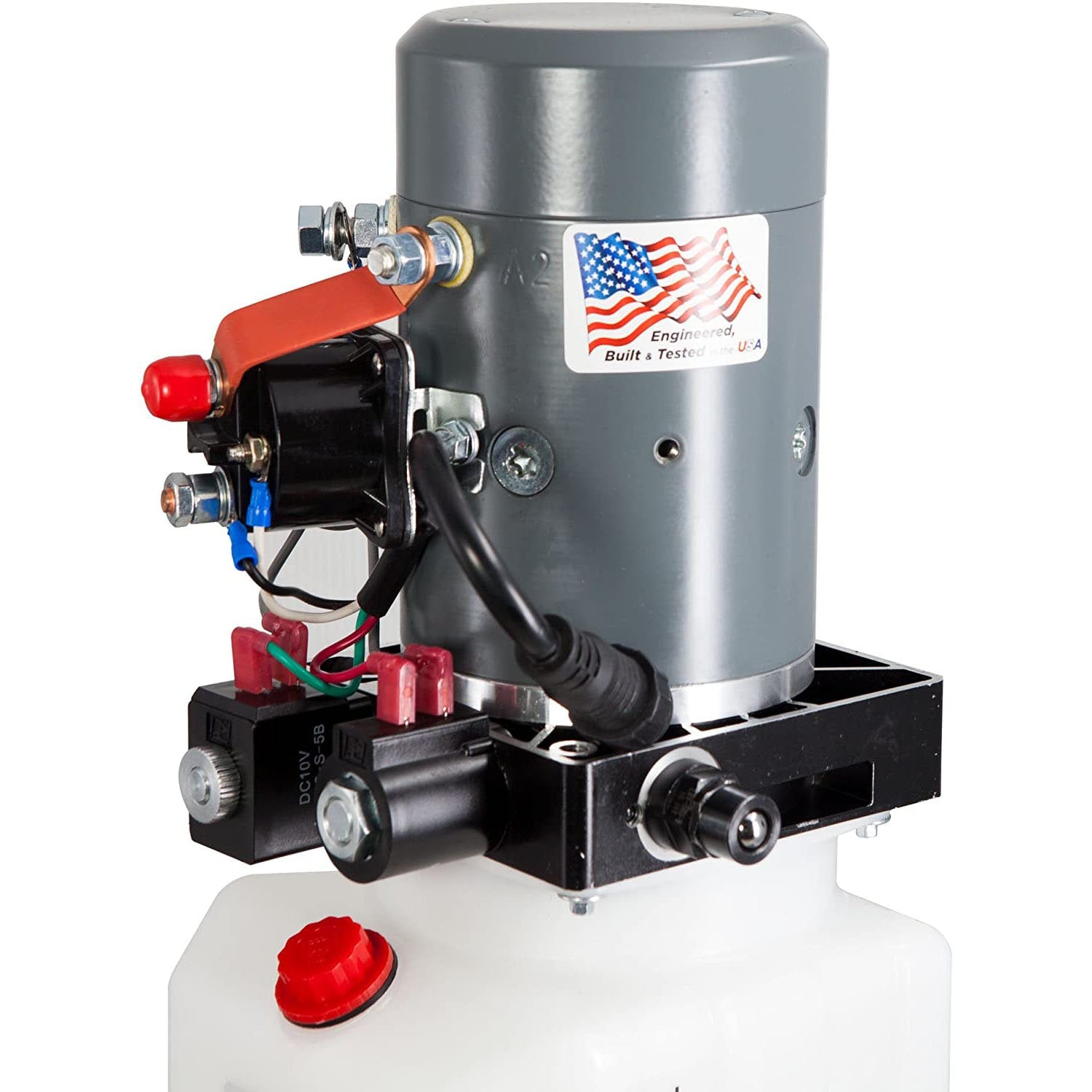

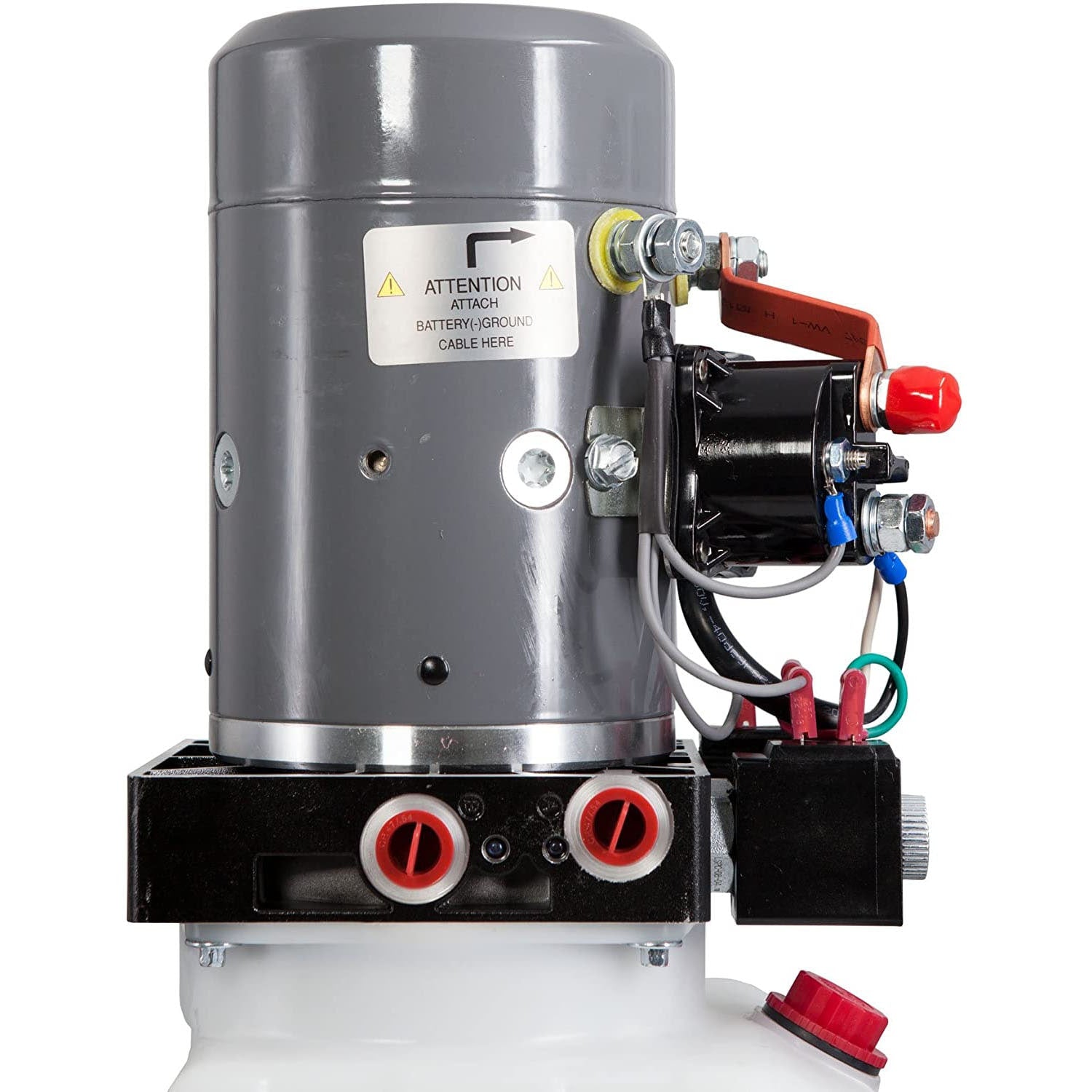

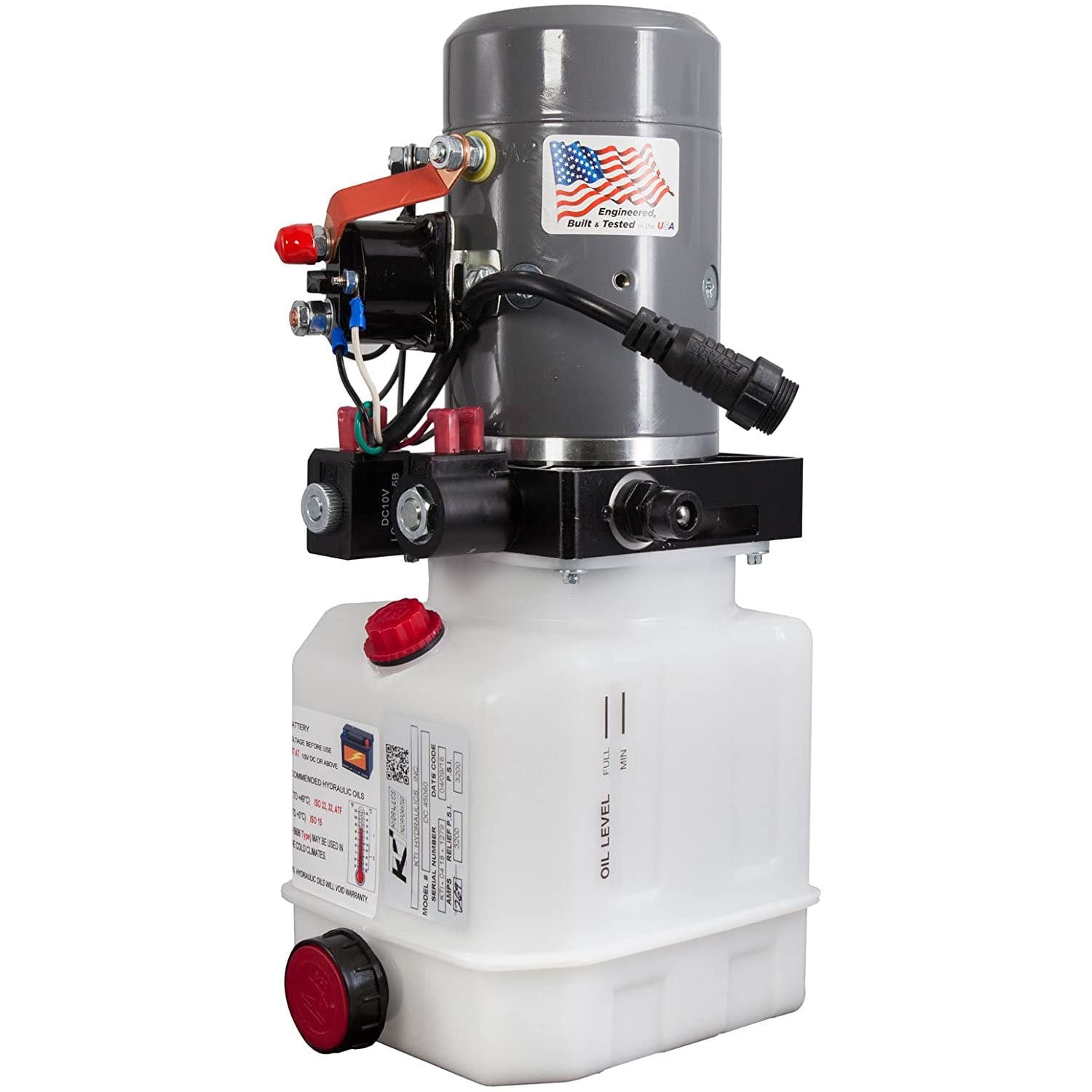

This is the pump that will work on all Hydraulic dumps, tilts, jacks, dovetails, that are made by PJ.
Since @2014 the only trailers these are used in are the TDD and the TD models. In 2014 we started using the same pump with the smaller reservoir for all other applications.
6 Quart Plastic Offset Reservoir
12V DC, (2) Terminal, Electric Motor
12V DC Heavy duty plastic start solenoid switch /100 amp
Cartridge relief valve, Adjustable set
4W2P Spool type cartridge soleniod valve
10V DC #8 Cylindrical coil w/ Dual spade
NC 2-WAY and P.O.C in 4-WAY Cartridge valve
Secondary relief valve w/ side exhaust ports. Set at 1500 PSI
SAE #6 (9/16-18) Plastic shipping plug
Pressure loaded gear pump (0.1324 IN³/R)
KTI 3/4 NPT 40 Micron air breather
2 Button 4-Wire Remote Pendant w/ Cylindrical Quick Disconnect 15' Cord
Warning Label Tag, Yellow, Torgue Spec
RVSAE6-30 @ 1500 PSI.
Perfect replacement pump for 12VDC remotely controlled hydraulic systems
Perfect for Dump Trailers - Lift Gates!!
Length 21.5" x Height 8" x Width 8"
