Description
Features
- All Brass Series Wound Motor - Prevents corrosion, ensuring long-lasting durability and consistent performance.
- Double Sealed Motor - Enhances protection against water and debris, improving reliability in harsh environments.
- Sealed 3-Stage Planetary Gears - Offers high torque and smooth operation while safeguarding against dust and debris.
- Sealed Waterproof Contactor - Ensures safe & easy operation, even in severe recoveries.
- Contactor Cover For Added Protection - Provides superior dust and water protection for the winch and control box, ensuring reliable use in tough conditions.
Information

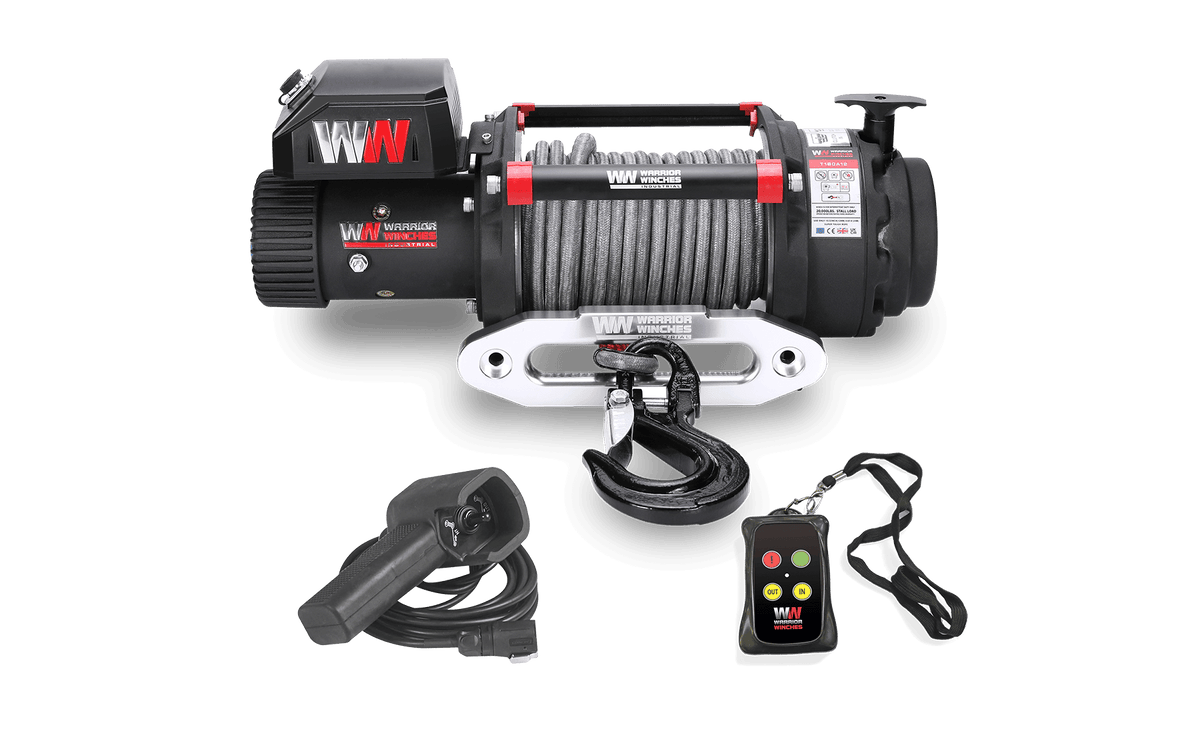

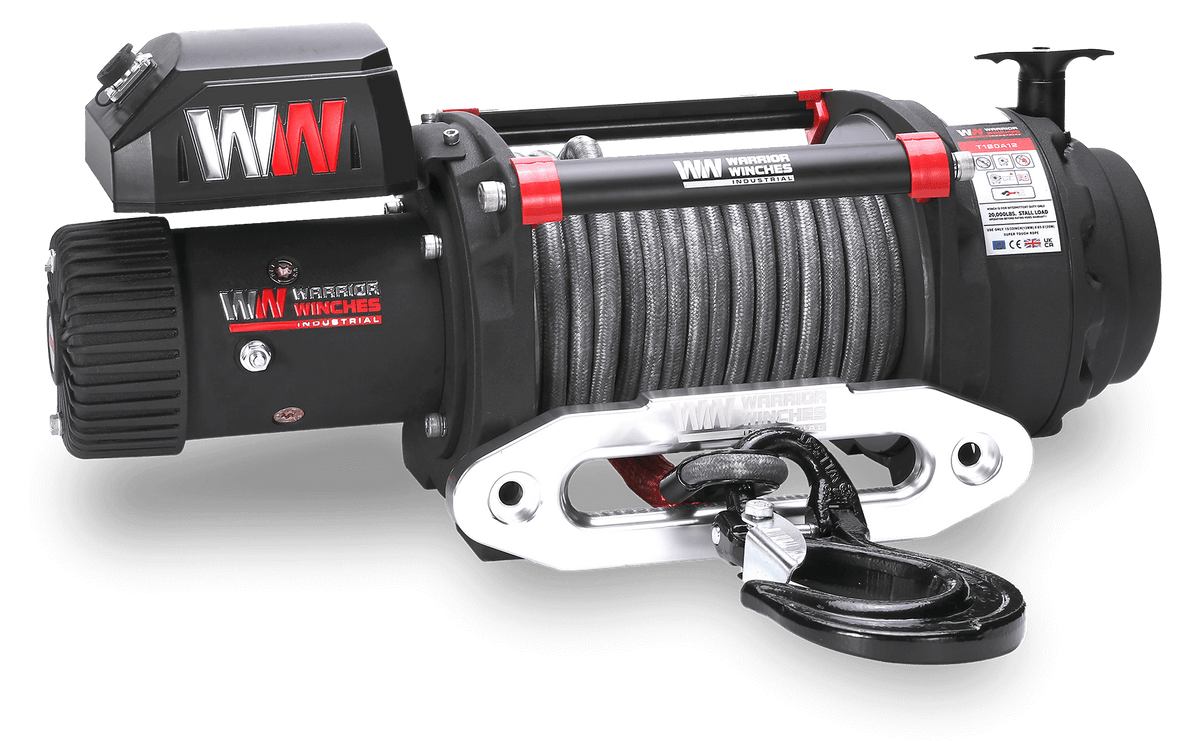

Introducing the T1000: The Ultimate Severe-Duty Winch
Originally engineered as an advanced military prototype, the T1000 Severe Duty Warrior Winch was built to withstand the harshest environments on the planet. Designed for extreme performance in severe climates, this winch has already proven itself in the field—earning high praise from defence experts and industry leaders alike.
After its standout debut at the Defence and Security Equipment International Expo, we made the decision to unleash the T1000 range for widespread use. Now, this battle-ready powerhouse is available for those who demand nothing but the best—whether for industrial, commercial, military, or hardcore off-road applications.
Like its namesake, the T1000 series is the most advanced, durable, and relentless winch on the market. If you need unmatched strength, military-grade reliability, and pure brute force, look no further. This is the ultimate winch—engineered to perform when it matters most.
The T1000 isn’t just a winch. It’s a Warrior.
Specifications
| ated Line Pull | 18000 lbs |
| Motor Type | 12V:Input: 5.4kW / 7.2hp;Output: 2.9 kW /3.9hp |
| Rated Volt | 12v |
| Clutch | Manual |
| Gearing | 430:1 |
| Gearing System | Planetary |
| Braking Action | Automatic screw cone |
| Drum Size (Diameter x Length) | 3.50 x 8.62 in |
| Controls | Wired Remote Wireless Remote |
| Cable Material | Synthetic |
| Cable Size (Diameter x Length) | 0.47 in x 66 ft Find replacement Armortek Synthetic Rope |
| Fairlead | Hawse |
| Mounting Pattern | 10 × 4.5 in / 10 × 6.5 in (8-M12) |

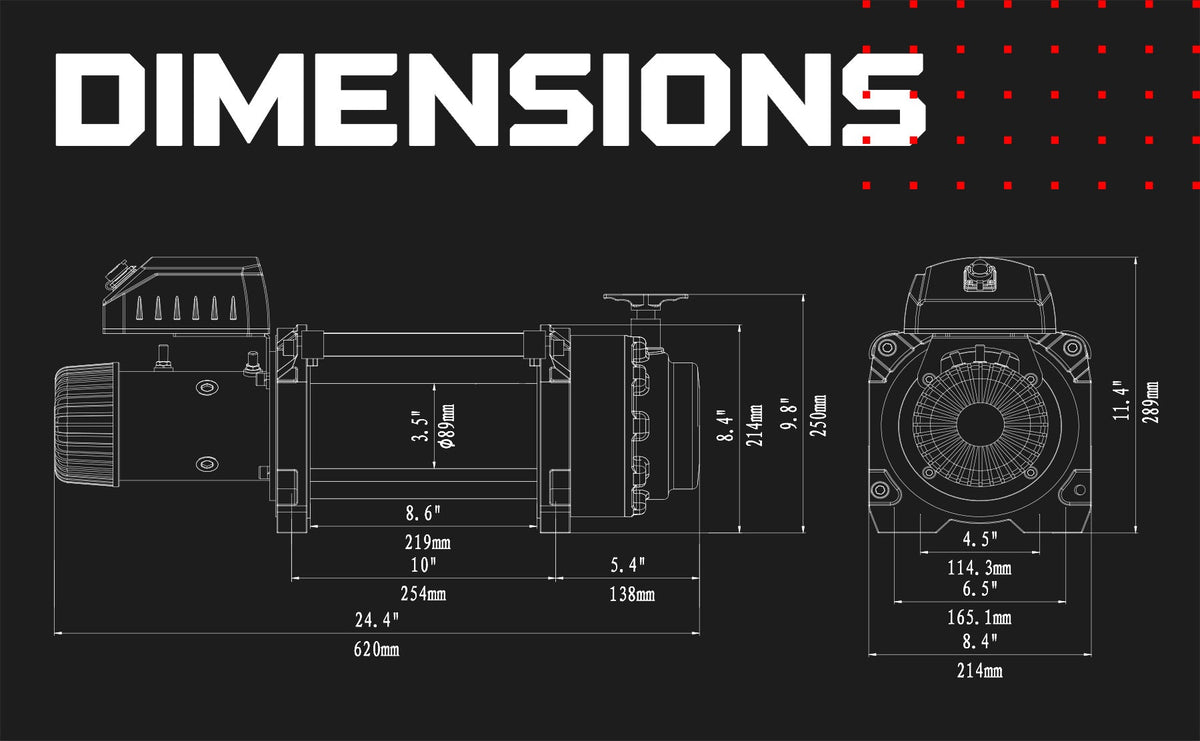

| Dimensions (LWH) | 24.41 x 8.43 x 11.38 in |
| Weight | 135 lbs |
| Warranty | 5 Year |
| Waterproof Rating (IP) | 67 |
| Certification | CE |
| Layer of Rope/Cable | Line Pull: lbs(kgs) | Rope on drum ft(m) |
|---|---|---|
| 1 | 18000 (8165) | 18.0 (6.0) |
| 2 | 14544 (6597) | 40.7 (13.0) |
| 3 | 12200 (5534) | 65.6 (20.0) |
| Line Pull lbs (kgs) |
Line Speed 12v ft/min (m/min) |
Amp Draw 12v |
|---|---|---|
| 0 | 19.7 (6.0) | 100 |
| 6000 (2722) | 7.2 (2.2) | 220 |
| 10000 (4536) | 5.6 (1.7) | 320 |
| 12500 (5670) | 4.9 (1.5) | 350 |
| 14000 (6350) | 4.6 (1.4) | 380 |
| 18000 (8165) | 3.0 (0.9) | 460 |
What's in the box
- T1000 Winch
- Heavy Duty Aluminum Hawse Fairlead
- Armortek Extreme Synthetic Rope
- Heavy Duty Hook
- Heavy Duty Wired Remote
- Heavy Duty Wireless Remote
